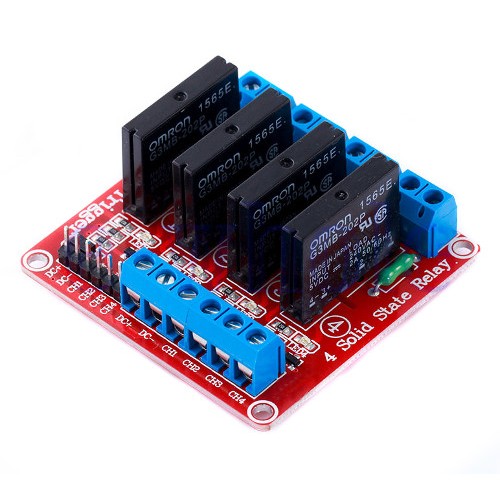

4 Channel Solid State Relay Module

  • 4 Channel Solid State Relay Module
    *Ši nuotrauka skirta tik susipažinimui su produktu. Tikrasis produktas gali skirtis nuo nuotraukos.

Description:

  • 5V Omron solid state relays 240V / 2A, output with resistive fuse 240V / 2A.
  • Dimensions: 57x55x25 (length x width x height)
  • Input Power: 5VDC
  • Control signal input voltage: (0-2.5V low state relay ON) (3-5V state high relay OFF)

Feature:

  • Voltage:5V
  • Quiescent current: 0 mA
  • Operating current: 12.5mA
  • Trigger Voltage: 3.3-5V
  • Trigger current: 2mA
  • DC +: positive power supply (according to the relay voltage supply)
  • DC-: negative power supply
  • CH1: 1 relay module signal trigger end (low level trigger effective)
  • CH2: 2 relay module signal trigger end (low level trigger effective)
  • CH3: 3 relay module signal trigger end (low level trigger effective)
  • CH4: 4 relay module signal trigger end (low level trigger effective)
  • Product Code: U-0081
  • In Stock
  • Price:12.80€

    10.88€

    with TAX

The product is currently Out-of-Stock. Enter your email address below and we will notify you as soon as the product is available.
