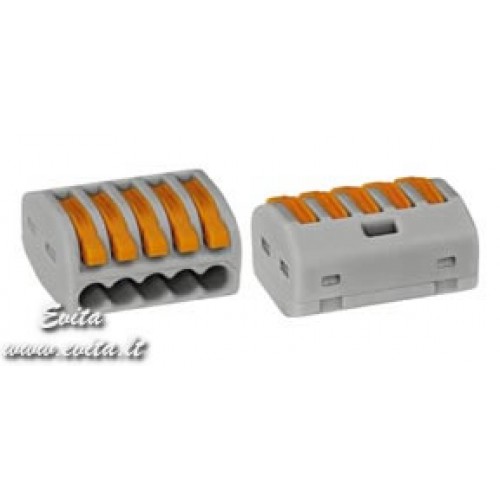

Push wire compact connector with levers 222-415 5x0,08-4mm2 32A 400V WAGO
Technical data:
Cross section from [mm²] 0,08 mm²
Cross section to [mm²] 2,5 mm²
Cross section from [AWG] 28 AWG
Cross section to [AWG] 14 AWG
Wiring method e+f
Connection method CAGE CLAMP®CONNECTION
Number of strands 5
Cross section from [mm²] 0,08 mm²
Cross section to [mm²] 4 mm²
Cross section from [AWG] 28 AWG
Cross section to [AWG] 12 AWG
Wiring method f
Number of strands 5
Measured voltage EN 400 V
Measured shock voltage 4 kV
Pollution degree 2
Current intensity EN 32 A
Weight 6,6 g
Color grey
Wiring type Side-entry
No. of connection Points 5
No. of potentials 1
Height 14,5 mm
Height 0,571 in
Width 26,6 mm
Width 1,047 in
Depth 20,5 mm
Depth 0,807 in
Strip length from 9 mm
Strip length to 10 mm
Strip length 0,37 in
- Product Code: S*W222-415
- In Stock
-
Price:
0.90€
with TAX
