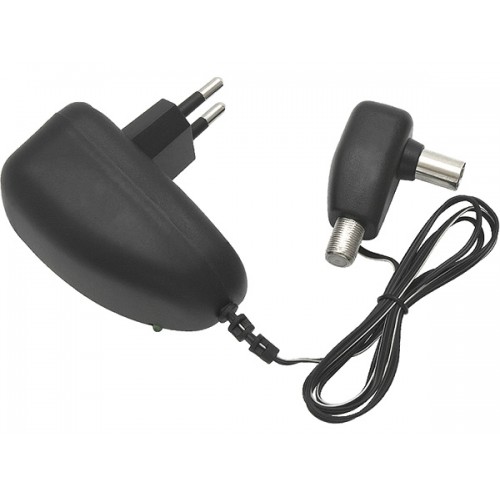

Stabilized power supply 12V 0.1A
*Ši nuotrauka skirta tik susipažinimui su produktu. Tikrasis produktas gali skirtis nuo nuotraukos.
Prosonic stabilized power supply is used to power antenna amplifiers via a coaxial cable, feed the signal from the output of the amplifier to the antenna input OTV.
Prosonic power adapter is designed for continuous operation. After installing the coaxial cable to the splitter and turning into a power outlet may remain in the on state. Proper operation of the power supply will be signaled by illumination of the LED indicator on the housing. In the case of a faulty connection to coaxial cable splitter or amplifier output (short sheath and the inner conductor) LED light does not glow.
SPECIFICATIONS:
- Voltage input: 230V, 50Hz
- Output voltage continuously: regulated 12V
- Maximum load current: 100mA
- Stabilizer: 78L12
- Rectifier diode: 1N4007
- Product Code: B-ZS12/100F
- Out Of Stock
-
Price:
3.00€
with TAX
